Zetpol® HNBR

Zetpol® hydrogenated nitrile (HNBR) is ZEON’s toughest, most durable elastomer. Zetpol resists prolonged exposure to 160°C and provides superior resistance to hot fluids. The toughness of Zetpol makes it the ideal choice for automotive belt, seals, and oil field components.

Zetpol is classified as a DH-DK polymer according to SAE J200 / ASTM D200.


KEY ATTRIBUTES

Performance from -40° to +160°C

Zetpol is ideal for applications requiring both high and low temperature performance. It provides excellent retention of physical properties over a wide range of temperatures from -40° to +160°C.

Chart showing Zetpol's retention of physical properties at elevated temperatures

Suggested Grades

Product
Grade
% ACNMooney
Viscosity
Specific
Gravity
% HYDSpecial Properties / Applications
10204471-850.9891Sulfur-curable for fuel-resistant hose, diaphragm, and seal applications. FDA-compliant
20103678-920.9596For O-rings, gaskets, seals, and oil field components requiring the best balance of heat resistance and compression set. FDA-compliant.
2010L3650-650.9596Low-viscosity version of 2010. FDA-compliant
20003678-920.95> 99.5For O-rings, gaskets, seals, and oil field components requiring the best heat and ozone resistance. FDA-compliant.
2000L3658-720.95> 99.5Low-viscosity version of 2000. FDA-compliant.
20014088-1020.95>99.5Improved balance of oil resistance and low-temperature properties.

Sealing Force Retention

Zetpol has excellent retention of sealing force, retaining more than 50% of initial sealing force after prolonged heat exposure. It’s the ideal choice for static and dynamic seal and gasket applications, including front cover gaskets, requiring resistance to both coolant and engine oil.

Chart showing Zetpol's retention of sealing force after prolonged heat exposure

Suggested Grades

Product Grade% ACNMooney ViscositySpecific Gravity% HYDSpecial Properties / Applications
20103678-920.9596For O-rings, gaskets, seals, and oil field components requiring the best balance of heat resistance and compression set. FDA-compliant.
2010L3650-650.9596Low-viscosity version of 2010. FDA-compliant
20003678-920.95> 99.5For O-rings, gaskets, seals, and oil field components requiring the best heat and ozone resistance. FDA-compliant.
2000L3658-720.95> 99.5Low-viscosity version of 2000. FDA-compliant.
20014088-1020.95>99.5Improved balance of oil resistance and low-temperature properties.

Strength at Elevated Temperatures

Zetpol has superior retention of physical properties at elevated temperatures up to 160 °C when compared with other elastomers.

Chart showing Zetpol's tensile strength retention compared at high temperature compared to other elastomers

Suggested Grades

Product
Grade
% ACNMooney
Viscosity
Specific
Gravity
% HYDSpecial Properties / Applications
10204471-850.9891Sulfur-curable for fuel-resistant hose, diaphragm, and seal applications. FDA-compliant
20103678-920.9596For O-rings, gaskets, seals, and oil field components requiring the best balance of heat resistance and compression set. FDA-compliant.
2010L3650-650.9596Low-viscosity version of 2010. FDA-compliant
20003678-920.95> 99.5For O-rings, gaskets, seals, and oil field components requiring the best heat and ozone resistance. FDA-compliant.
2000L3658-720.95> 99.5Low-viscosity version of 2000. FDA-compliant.
20014088-1020.95>99.5Improved balance of oil resistance and low-temperature properties.

Hot Oil Resistance

Even after long exposure to hot (150°C) engine oil, Zetpol maintains its tensile strength and elongation with minimal swelling.  Volume swell after 1,512 hours of exposure to automatic transmission fluid is under 5%.

Chart showing Zetpol's tensile strength in an environment with transmission fluid

Suggested Grades

Product Grade% ACNMooney ViscositySpecific Gravity% HYDSpecial Properties / Applications
1000L4458-720.9898Low-viscosity polymer for transfer or injection molding for fuel and oil field applications.
FDA-compliant.
20103678-920.9596For O-rings, gaskets, seals, and oil field components requiring the best balance of heat resistance and compression set. FDA-compliant.
2010L3650-650.9596Low-viscosity version of 2010. FDA-compliant
20003678-920.95> 99.5For O-rings, gaskets, seals, and oil field components requiring the best heat and ozone resistance. FDA-compliant.
2000L3658-720.95> 99.5Low-viscosity version of 2000. FDA-compliant.
20014088-1020.95>99.5Improved balance of oil resistance and low-temperature properties.

Dynamic Properties

Timing belts, rotational seals, and industrial rolls benefit from Zetpol’s excellent dynamic properties.

Chart showing Zetpol's dynamic properties

Suggested Grades

Product Grade% ACNMooney ViscositySpecific Gravity% HYDSpecial Properties / Applications
2030L3650-650.9580Highest level of unsaturation available. Provides excellent dynamic properties.
Especially suited for rolls and dynamic oil field component applications. FDA-compliant.
10104478-920.9896For fuel-resistant hose, diaphragms, and seals in automotive and industrial refrigerant applications. FDA-compliant.
20103678-920.9596For O-rings, gaskets, seals, and oil field components requiring the best balance of heat resistance and compression set. FDA-compliant.
2010L3650-650.9596Low-viscosity version of 2010. FDA-compliant
2010EP3623-370.9596Easy-processing version of 2010L for improved flow characteristics.
Excellent for injection-molding applications.

Steam Resistance

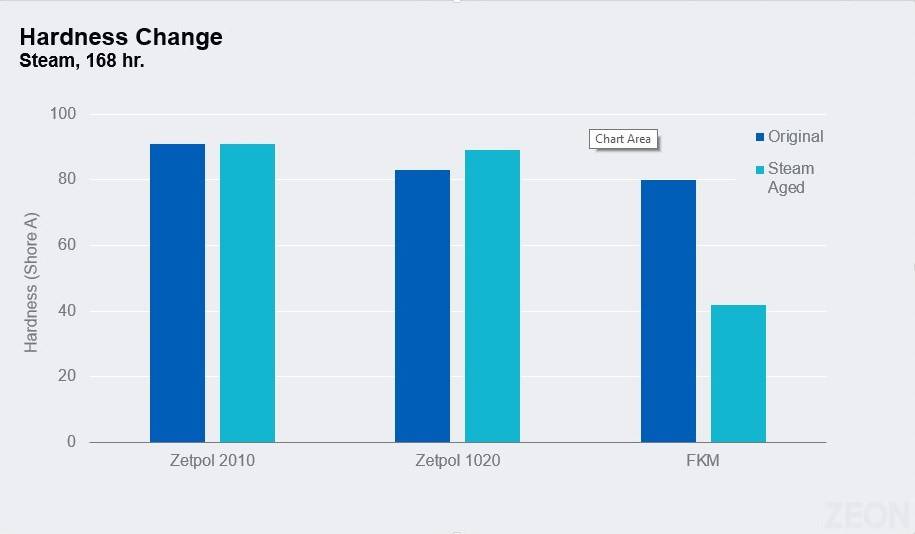

Zetpol does not swell nor soften when exposed to steam. In comparison, FKM softens after steam exposure. Oil field and industrial applications are common uses of Zetpol HNBR.

Suggested Grades

Product Grade% ACNMooney ViscositySpecific Gravity% HYDSpecial Properties / Applications
2010H36>1200.9596Ultra-high-viscosity version of 2010. Offers excellent extrusion resistance. FDA-compliant.
10104478-920.9896For fuel-resistant hose, diaphragms, and seals in automotive and industrial refrigerant applications. FDA-compliant.
20003678-920.95> 99.5For O-rings, gaskets, seals, and oil field components requiring the best heat and ozone resistance. FDA-compliant.
20203671-850.9591For seals, rolls, belts, and oil field components. Provides excellent balance between static heat resistance and dynamic hysteresis. FDA-compliant.

Low Temperature Optimized Grades

For applications requiring the best low temperature performance, Zetpol 4310, Zetpol 4300 and Zetpol 3310 provide a level of low-temperature performance that was not previously possible with HNBR.

Chart showing Zetpol's excellent performance in low temperature, unusual for HNBR

Suggested Grades

Product Grade% ACNMooney ViscositySpecific Gravity% HYDSpecial Properties / Applications
33102560-1000.9795Improved low-temperature performance (TR10 of -33°C), providing a good balance of oil resistance and low-temperature resistance, plus improved high-temperature capabilities. High-temperature properties improved to 160-170°C. Good fluid resistance.
43001755-950.95>99.5Outstanding low-temperature performance with the heat resistance of a fully saturated HNBR. Designed for extreme service conditions (TRIO of -36°), with good fluid resistance.
43101752-720.9895Excellent low-temperature performance (TR10 of -36°C) for arctic applications.

APPLICATIONS

Oil & Gas

Zetpol Oil ApplicationDeeper, hotter wells require tough elastomers. Materials need to be resistant to oil, extreme heat, hydrogen sulfide, amine corrosion inhibitors, steam and explosive decompression. Zetpol meet these needs and is commonly used in a variety of oil & gas applications. Customers use Zetpol for blow out preventers, stators, water swellable packers, pipe protectors, drill bit seals, inflatable packers, well head seals, and down hole packers


Automotive Seals & O-Rings

Automotive Seals and O-RingsZetpol HNBR maintains excellent physical properties, including in mixed environments of oil + water/coolant. It is ideal for various sealing applications: Zetpol can be used on front cover, intake manifold, and oil pan gaskets, as well as drain plug seals and water pump seals.


Timing Belts

Timing BeltZetpol is ideally suited to meet the requirements of belting applications. It provides superior dynamic properties as well as minimum loss of hardness and modulus with increased temperature. These properties, coupled with Zetpol’s superior heat, oil, wear and ozone resistance, enable belts with higher operating temperatures and longer life. Zetpol is suitable for a variety of timing belts, including synchronous timing belts, V belts, and industrial belts.


Automotive Hoses

Zetpol’s excellent heat and fluid resistance allows for extended service life at elevated temperatures. Zetpol has good resistance to biodiesel and is well suited for use in bio-diesel hose, industrial hose, and hydraulic hose.


Rolls

High hardness Zetpol rolls offer excellent physical properties and are designed to provide rolls with higher operating speeds and longer service-life. Its dynamic properties make it an ideal material for large rolls used in paper mills and industrial settings, including couch rolls, pickup rolls, and sizing rolls.


Axle Boots

Axle BootDriveshaft and axle joints require elastomeric boots that withstand repeated flexing, ozone exposure, and both hot and cold temperatures. Zetpol’s superior heat, oil, grease, and wear resistance enable axle, driveline, and propshaft boots with longer service life at higher temperatures.


GRADES

Zetpol® Hydrogenated Nitrile Elastomers (HNBR)

Product Grade% ACNMooney
Viscosity
Specific
Gravity
% HYDIodine
Number
Special Properties / Applications
1000L4458-720.98989Low-viscosity polymer for transfer or injection molding for fuel and oil field applications.
10104478-920.989610For fuel-resistant hose, diaphragms, and seals in automotive and industrial refrigerant applications.
10204471-850.989124Sulfur-curable for fuel-resistant hose, diaphragm, and seal applications.
20003678-920.95> 99.57For O-rings, gaskets, seals, and oil field components requiring the best heat and ozone resistance.
2000L3658-720.95> 99.57Low-viscosity version of 2000.
20014088-1020.95>99.57Improved balance of oil resistance and low-temperature properties.
20103678-920.959611For O-rings, gaskets, seals, and oil field components requiring the best balance of heat resistance and compression set.
2010EP3623-370.959611Easy-processing version of 2010L for improved flow characteristics.
Excellent for injection-molding applications.
2010H36>1200.959611Ultra-high-viscosity version of 2010. Offers excellent extrusion resistance.
2010L3650-650.959611Low-viscosity version of 2010.
20203671-850.959128For seals, rolls, belts, and oil field components. Provides excellent balance between static heat resistance and dynamic hysteresis.
2030L3650-650.958057Highest level of unsaturation available. Provides excellent dynamic properties.
Especially suited for rolls and dynamic oil field component applications.
33102560-1000.979515Improved low-temperature performance (TR10 of -33°C), providing a good balance of oil resistance and low-temperature resistance, plus improved high-temperature capabilities. High-temperature properties improved to 160-170°C. Good fluid resistance.
43001755-950.95>99.510Outstanding low-temperature performance with the heat resistance of a fully saturated HNBR. Designed for extreme service conditions (TRIO of -36°), with good fluid resistance.
43101752-720.989515Excellent low-temperature performance (TR10 of -36°C) for arctic applications.

Zetpol® High-Performance Hydrogenated Nitrile Elastomers (HNBR)

Product Grade% ACNMooney ViscositySpecific GravityIodine NumberSpecial Properties / Applications
25103535-550.9512Superior compression-set performance. Stable physical properties at elevated temperatures.
371023450.9512Superior compression set and improved balance of oil and fuel resistance vs. low-temperature properties. Improved resisatnce to polycyclic aromatic hydrocarbons.
361021450.9512Superior compression-set performance. Improved low-temperature flexibiilty compared with Zetpol 2510.

Zetpol® Easy-Processing Hydrogenated Nitrile Elastomers (HNBR)

Product Grade% ACNMooney ViscositySpecific Gravity% HYDIodine NumberSpecial Properties / Applications
1010EP4423-370.989610Easy-processing version of 1010 for improved flow charatceristics. Excellent for injection molding applications.
2001EP4023-370.95>99.57Easy-processing version of 2001 for improved flow characteristics. Excellent for Injection molding applications.
2000EP3623-370.95> 99.57Easy-processing version of 2000L for improved flow charatceristics. Excellent for injection molding applications.
2010EP3623-370.959611Easy-processing version of 2010L for improvefdlow charatceristics. Excellent for Injection molding applications.
2020EP3623-370.959128Easy-processing version of 2020L for Improved flow characteristics. Excellent for injection molding applications.
3310EP2523-3797.009515Easy-processing version of 3310 for improved flow characteristics. Excellent for injection molding applications.
4300EP1723-370.95>99.510Easy-processing version of 4300 for improved flow characteristics. Excellent for injection molding applications.
4310EP1723-370.989515Easy-processing version of 4310 for improved flow characteristics. Excellent for injection molding applications.

Chemistat® Latex Hydrogenated Nitrile Elastomers (HNBR)

Product Grade% ACN% SolidsSpecial Properties / Applications
LCH-7302X3834Ionic dispersion of a hydrogenated acrylonitrile butadiene latex. Requires a sulfur curing system to develop optimal properties that render it resistant to hydrocarbons, oils, and plasticizers.

Zetpol ZLX Latex Hydrogenated Nitrile Elastomers (HNBR)

Product Grade% ACNBrookfield ViscositypHIodine NumberSpecial Properties / Applications
2230LX33Max 50Between 8 and 10Between 28 and 40Zetpol HNBR Latex for cord and fabric treatments for timing belt applications. Can be used for dipping applications to improve performance compared with NBA Latex.

Zeoforte® ZSC Nano-Composite Hydrogenated Nitrile Elastomers (HNBR)

Product Grade% ACNMooney ViscositySpecific GravityIodine NumberSpecial Properties / Applications
ZSC 2095CX3683-1031.24Max 7Highly saturated Zetpol composite withoutstanding mechanical properties at high hardness. CX grades designed for maximum dynamic performance.
ZSC 2195H3670-9021.2411Highly saturated Zetpol composite withoutstanding mechanical properties at high hardness. CX grades designed for maximum dynamic performance.
ZSC 2195LCX3655-901.2411Highly saturated Zetpol composite withoutstanding mechanical properties at high hardness. CX grades designed for maximum dynamic performance.
ZSC 2195CX3680-1101.2411Highly saturated Zetpol composite withoutstanding mechanical properties at high hardness. CX grades designed for maximum dynamic performance.
ZSC 2295L3660-1001.2428Zetpol composite, new grades with high dimensional stability and low-heat building, excellent tear resistance, abrasion resistance,and good elongation at high hardness. Excellent dynamic properties. Used for timing belts, poly-V- belts, and printing rollers.
ZSC 2295CX3675-1101.2428Zetpol composite, new grades with high dimensional stability and low-heat building, excellent tear resistance, abrasion resistance,and good elongation at high hardness. Excellent dynamic properties. Used for timing belts, poly-V- belts, and printing rollers.
ZSC 2298L3665-951.2428Zetpol composite, new grades with high dimensional stability and low-heat building, excellent tear resistance, abrasion resistance,and good elongation at high hardness. Excellent dynamic properties. Used for timing belts, poly-V- belts, and printing rollers.
ZSC 23953660-801.2456Low saturated Zetpol composite with very good compression set resistance, outstanding dynamical properties.For paper and steel rollers.

Contact a ZEON technical specialist for more grades or to discuss a specific application, specification, question or request a sample. GET TECHNICAL ASSISTANCE
